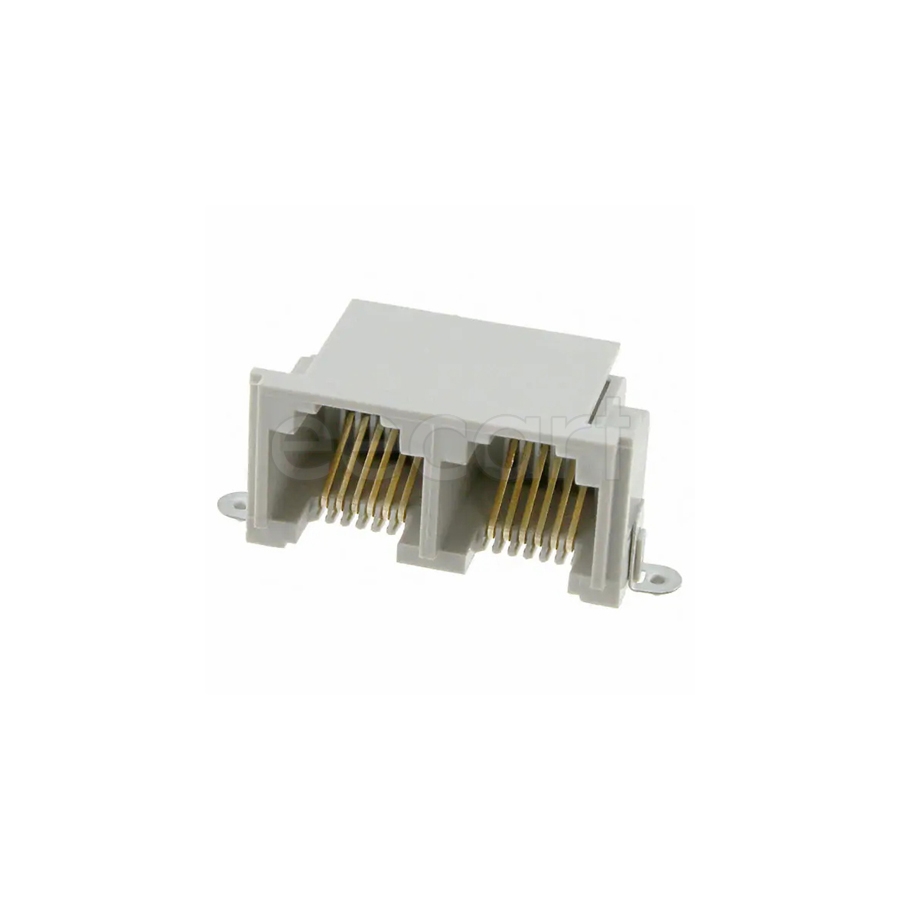

5406903-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5406903-1
Datasheet:
Description:
Modular / Ethernet Connectors SMD/SMT RJ25
| Parameter | Value |
|---|---|
| Length | 30.53 mm |
| Termination | SMD/SMT, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Height | 12.95 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.01 mm |
| Max Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Gray |
| Shielding | Unshielded |
| Number of Contacts | 12 |
| Direction(Counting Sequence) | Up |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 2 |
| Housing Color | Gray |
| Plating | Gold |
| Keyed | No |
| Number of Positions Loaded | 6 |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57 mm |
| Package Quantity | 650 |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ25 |
| Number of Positions/Contacts | 6P6C |
Stock: 4604
Distributors
pcbx
pcbxUnit Price$0.78230
Ext.Price$0.78230
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78230 | $0.78230 |
| 10 | $0.65701 | $6.57010 |
| 25 | $0.71120 | $17.78000 |
| 50 | $0.76986 | $38.49300 |
| 100 | $0.83336 | $83.33600 |
| 300 | $0.90210 | $270.63000 |
| 500 | $0.97652 | $488.26000 |
